YUNPEN USA
YO-T1, YO-T3 SERIES
1. FEATURES
  • Snap-in mojnting type for saving more labor cost
  • Low cost
  • 250 Fasten terminals (YO-T1)
  • Solder lug terminals (YO-T3)
  • All parts are approved by UL, CSA and VDE.


2. SPECIFICATIONS
ITEM \ MODEL
YO01T1/YO01T3
YO03T1/YO03T3
YO06T1/YO06T3
YO10T1/YO10T3
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.60 ~ 45MHZ
0.10 ~ 40MHZ
0.80 ~ 50MHZ
0.20 ~ 50MHZ
0.80 ~ 50MHZ
0.40 ~ 50MHZ
1.00 ~ 50MHZ
1.00 ~ 50MHZ
CX
0.1uF
0.1uF
0.1uF
0.1uF
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
3.7mH*2
1.8mH*2
0.7mH*2
0.3mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YO01T1/YO01T3 1A 26 32 35 41 42 43
YO03T1/YO03T3 3A 21 27 33 41 43 40
YO06T1/YO06T3 6A 14 22 26 39 43 44
YO10T1/YO10T3 10A 5 15 19 33 39 43
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YO01T1/YO01T3 1A 9 19 23 44 45 42
YO03T1/YO03T3 3A 8 17 21 44 44 38
YO06T1/YO06T3 6A 6 16 21 38 42 43
YO10T1/YO10T3 10A 4 14 18 34 42 36

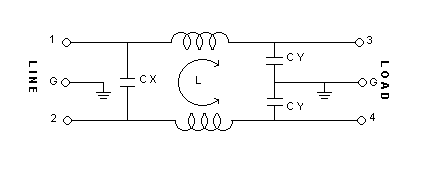

4. CIRCUIT

5. DIMENSION(mm)

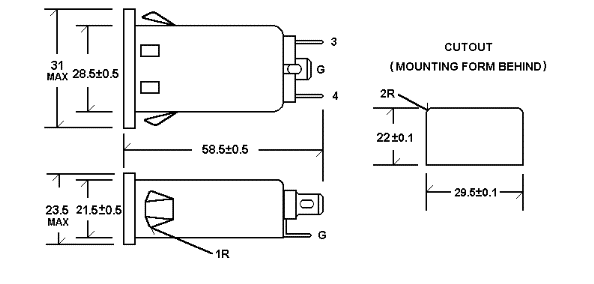

YO01T1~YO10T1

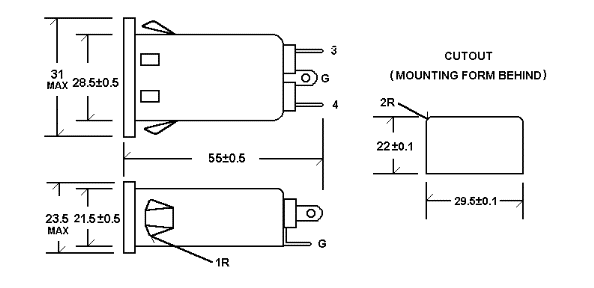

YO01T3~YO10T3



Download yot1t3.pdf Specification File (74K)
