yoa1-a3

YUNPEN USA

YO-A1, YO-A3 SERIES

1. FEATURES

Snap-in mounting type for saving more labor cost
Low cost
250 Fasten terminals (YO-A1)
Solder lug terminals (YO-A3)
All parts are approved by UL, CSA and VDE

2. SPECIFICATIONS

ITEM \ MODEL		YO01A1/YO01A3	YO03A1/YO03A3	YO06A1/YO06A3	YO10A1/YO10A3
RATED VOLTAGE		250V AC	250V AC	250V AC	250V AC
RATED CURRENT		1A	3A	6A	10A
LEAK CURRENT		0.8mA MAX 250V,50HZ	0.8mA MAX 250V,50HZ	0.8mA MAX 250V,50HZ	0.8mA MAX 250V,50HZ
TEST VOLTAGE	LINE TO LINE LINE TO GROUND	1450V DC 2250V DC	1450V DC 2250V DC	1450V DC 2250V DC	1450V DC 2250V DC
INSULATION RESISTANCE		100M ohm MIN 250VDC	100M ohm MIN 250VDC	100M ohm MIN 250VDC	100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE		0.5 ohm MAX	0.2 ohm MAX	0.15 ohm MAX	0.1 ohm MAX
TEMPERATURE RISE		30C MAX	30C MAX	30C MAX	30C MAX
OPERATING TEMPERATURE		-25 ~ +85C	-25 ~ +85C	-25 ~ +85C	-25 ~ +85C
ATTENUATION	NORMAL MODE 25dbMIN COMMON MODE 25dbMIN	0.60 ~ 45MHZ 0.10 ~ 40MHZ	0.80 ~ 50MHZ 0.20 ~ 50MHZ	0.80 ~ 50MHZ 0.40 ~ 50MHZ	1.00 ~ 50MHZ 1.00 ~ 50MHZ
CX		0.1uF	0.1uF	0.1uF	0.1uF
CY		3300pF*2	3300pF*2	3300pF*2	3300pF*2
INDUCTANCE		3.7mH*2	1.8mH*2	0.7mH*2	0.3mH*2

3. NOISE ATTENUATION (dB)

COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM

TYPE CURRENT FREQUENCY-MHZ

RATING 0.15 0.5 1.0 5.0 10.0 30.0

YO01A1/YO01A3 1A 26 35 39 37 38 41

YO03A1/YO03A3 3A 21 30 36 38 39 45

YO06A1/YO06A3 6A 13 21 27 38 41 42

YO10A1/YO10A3 10A 6 13 18 31 37 44

DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM

YO01A1/YO01A3 1A 8 17 22 37 39 39

YO03A1/YO03A3 3A 7 17 21 39 38 36

YO06A1/YO06A3 6A 6 16 21 38 41 40

YO10A1/YO10A3 10A 4 13 18 32 45 39

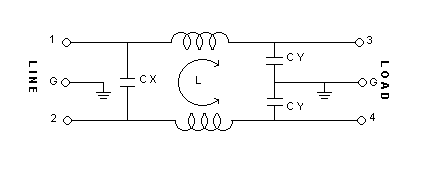

4. CIRCUIT

5. DIMENSION(mm)

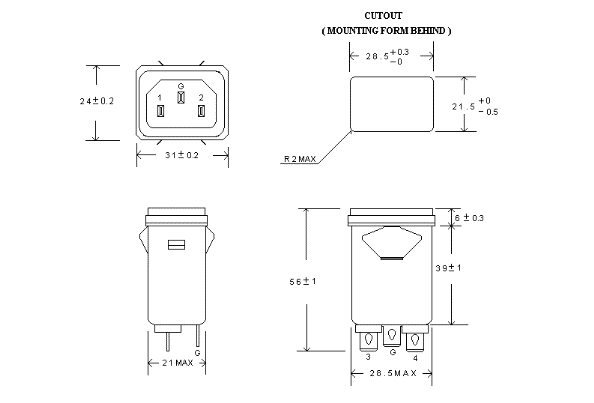

YO01A1~YO10A1

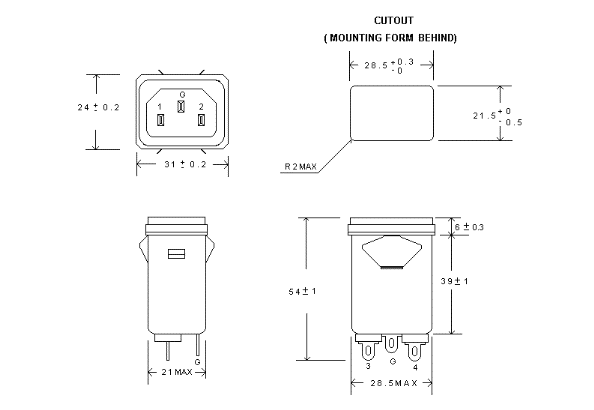

YO01A3~YO10A3

Download yoa1a3.pdf Specification File (74K)
