YUNPEN USA

YN-T9L2 SERIES
1. FEATURES
  • Direct Pc board mounting
  • Two stage filter designed to provide high performance in suppressing both line-to-line and line-to-ground noise
  • All parts are approved by UL, CSA, VDE, and SEMKO



2. SPECIFICATIONS

ITEM \ MODEL
YN02T9L2
RATED VOLTAGE
250V AC
RATED CURRENT
2A
LEAKAGE CURRENT
2mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE

LINE TO GROUND
1450V DC

2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.3 ohm MAX
TEMPERATURE RISE
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
ATTENUATION
NORMAL MODE 25 db MIN COMMON MODE 25 db MIN
0.20 ~ 50MHZ

0.10 ~ 50MHZ
CX
0.47uF
CY
4700pF*2
INDUCTANCE
(20.0+1.0)mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YN02T9L2 2A 25 46 50 58 47 38
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YN02T9L2 2A 25 46 50 67 62 48

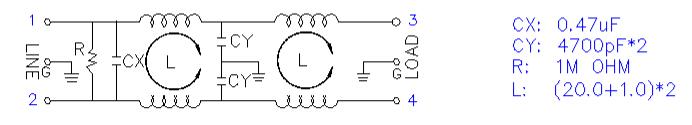

4. CIRCUIT

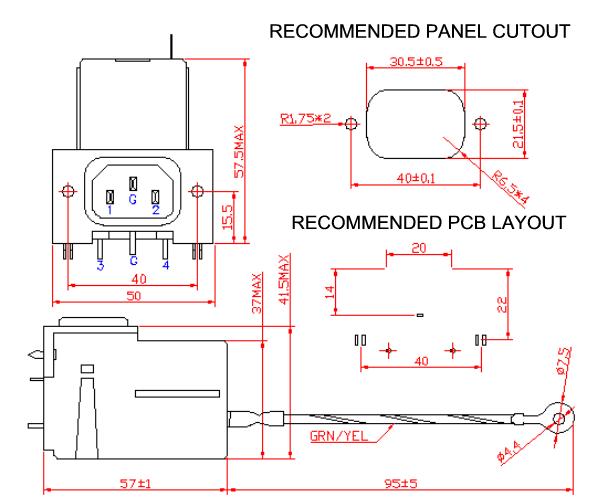

5. DIMENSION (mm)

YN-T9L2



Download ynt9l2.pdf Specification File (249K)
