2.
SPECIFICATIONS
|
ITEM
\ MODEL
|
YM15T1
|
YM16T1
|
|
RATED
VOLTAGE
|
250V
AC
|
250V
AC
|
|
RATED
CURRENT
|
15A
|
16A
|
|
LEAK
CURRENT
|
2.3mA
MAX 250V,50HZ
|
2.3mA
MAX 250V,50HZ
|
|
TEST
VOLTAGE
|
LINE
TO LINE
LINE
TO GROUND
|
1450V
DC
2250V
DC
|
1450V
DC
2250V
DC
|
|
INSULATION
RESISTANCE
|
100M
ohm MIN 250VDC
|
100M
ohm MIN 250VDC
|
|
DIRECT
CURRENT RESISTANCE
|
0.5
ohm MAX
|
0.2
ohm MAX
|
|
TEMPERATURE
RISE
|
30C
MAX
|
30C
MAX
|
|
OPERATING
TEMPERATURE
|
-25
~ +85C
|
-25
~ +85C
|
|
ATTENUATION
|
NORMAL
MODE 25dbMIN
COMMON
MODE 25dbMIN
|
0.60
~ 45MHZ
0.10
~ 40MHZ
|
0.80
~ 50MHZ
0.20
~ 50MHZ
|
|
CX
|
2uF
|
2uF
|
|
CY
|
10000pF*2
|
10000pF*2
|
|
INDUCTANCE
|
3.6mH*2
|
3.6mH*2
|
3.
NOISE ATTENUATION (dB)
| COMMON
MODE (LINE TO GROUND) IN 50 OHM SYSTEM |
| TYPE |
CURRENT |
FREQUENCY-MHZ |
| RATING |
0.15 |
0.5 |
1.0 |
5.0 |
10.0 |
30.0 |
| YM15T1 |
15A |
27 |
37 |
40 |
51 |
63 |
42 |
| YM16T1 |
16A |
29 |
38 |
39 |
45 |
52 |
21 |
| DIFFERENTIAL
MODE (LINE TO LINE) IN 50 OHM SYSTEM |
| YM15T1 |
15A |
27 |
39 |
42 |
59 |
53 |
41 |
| YM16T1 |
16A |
28 |
39 |
44 |
48 |
49 |
28 |
4.

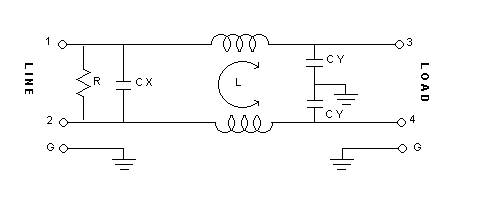

CIRCUIT
5.

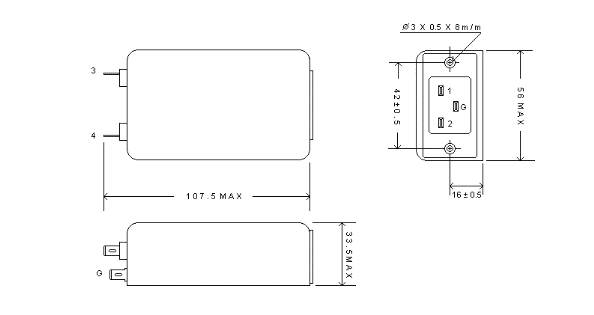

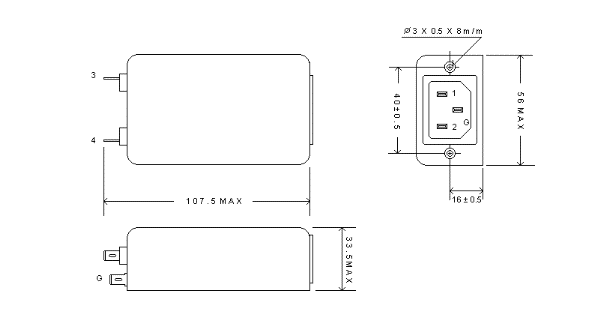

DIMENSION(mm)
YM15T1
YM16T1
