YUNPEN USA
YL-T1 SERIES
1. FEATURES
  • General purpose filter with a fuse holder providing effective emi suppression of both line-to-line and line-to-ground noise.
  • 250 Fasten terminals
  • All parts are approved by UL, CSA, VDE, SEMKO, NEMKO, DEMKO and FIMKO


2. SPECIFICATIONS
ITEM \ MODEL
YL01T1
YL03T1
YL06T1
YL10T1
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.40 ~ 50MHZ
0.10 ~ 45MHZ
0.50 ~ 50MHZ
0.13 ~ 50MHZ
0.80 ~ 40MHZ
0.50 ~ 47MHZ
1.20 ~ 50MHZ
1.50 ~ 50MHZ
CX
0.1uF
0.1uF
0.1uF
0.1uF
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
3.7mH*2
1.8mH*2
0.7mH*2
0.3mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YL01T1 1A 28 39 41 37 38 23
YL03T1 3A 21 28 33 38 39 48
YL06T1 6A 13 22 28 44 46 49
YL10T1 10A 6 15 21 33 39 38
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YL01T1 1A 8 19 28 42 42 28
YL03T1 3A 11 21 23 43 45 47
YL06T1 6A 6 16 21 41 44 37
YL10T1 10A 5 14 20 54 44 40

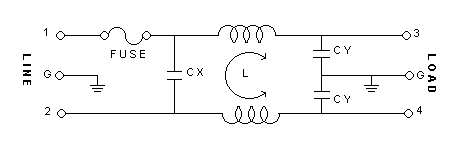

4. CIRCUIT

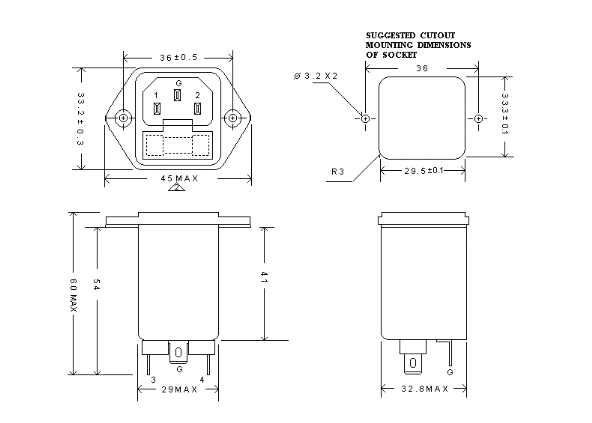

5. DIMENSION(mm)


YL01T1~YL10T1



Download ylt1.pdf Specification file (93K)
