YJ-T7 SERIES
1. FEATURES
  • Good noise attenuation in both forward and reverse directions for common mode and normal mode.
  • Hight relibaility designed for industrial equipment usage with ONE phase, 250vac/500vac
2. SPECIFICATIONS
ITEM \ MODEL
YJ30T7
YJ40T7
YJ50T7
YJ60T7
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
30A
40A
50A
60A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.08 ohm MAX
0.06 ohm MAX
0.04 ohm MAX
0.03 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.60 ~ 45MHZ
0.10 ~ 40MHZ
0.80 ~ 50MHZ
0.20 ~ 50MHZ
0.80 ~ 50MHZ
0.40 ~ 50MHZ
1.00 ~ 50MHZ
1.00 ~ 50MHZ
CX
0.2uF*2
0.2uF*2
0.2uF*2
0.2uF*2
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
(3.7+0.35)mH*2
(2.6+0.35)mH*2
(1.7+0.11)mH*2
(1.2+0.11)mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YJ30T7 30A 17 59 66 59 46 43
YJ40T7 40A 15 55 60 59 52 31
YJ50T7 50A 16 42 48 51 49 36
YJ60T7 60A 14 28 34 47 46 27
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YJ30T7 30A 22 65 66 61 56 37
YJ40T7 40A 27 62 66 64 57 36
YJ50T7 50A 15 49 53 57 50 30
YJ60T7 60A 17 32 39 51 48 31

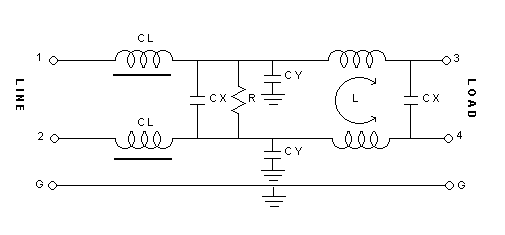

4. CIRCUIT

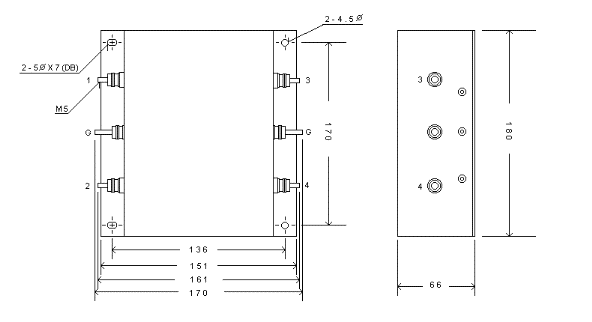

5. DIMENSION (mm)


YJ30T7~YJ60T7



Download yjt7.pdf Specification File (72K)
