YUNPEN USA
YI-T7 SERIES
1. FEATURES
  • Good noise attenuation in both forward and reverse directions for common mode and normal mode.
  • Hight relibaility designed for industrial equipment usage with 3 phases, 250vac/500vac
2. SPECIFICATIONS
ITEM \ MODEL
YI40T7/YI40T7-1
YI50T7/YI50T7-1
YI60T7/YI60T7-1
RATED VOLTAGE
250V AC/500V AC
250V AC/500V AC
250V AC/500V AC
RATED CURRENT
40A
50A
60A
LEAK CURRENT
1.3mA MAX 250V,50HZ
3.0mA MAX 500V,50HZ
1.3mA MAX 250V,50HZ
3.0mA MAX 500V,50HZ
1.3mA MAX 250V,50HZ
3.0mA MAX 500V,50HZ
TEST VOLTAGE
LINE TO LINE

LINE TO GROUND
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 500VDC
100M ohm MIN 250VDC
100M ohm MIN 500VDC
100M ohm MIN 250VDC
100M ohm MIN 500VDC
DIRECT CURRENT RESISTANCE
0.08 ohm MAX
0.06 ohm MAX
0.04 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN

COMMON MODE 25dbMIN
0.14 ~ 50MHZ

0.25 ~ 50MHZ
0.17 ~ 50MHZ

0.31 ~ 50MHZ
0.30 ~ 9.5MHZ

0.42 ~ 50MHZ
CX
0.2uF*3
0.2uF*3
0.2uF*3
CY
3300pF*3
3300pF*3
3300pF*3
INDUCTANCE
(0.93+0.25)mH*3
(0.73+0.11)mH*3
(0.41+0.11)mH*3

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YI40T7 40A 12 52 55 44 38 28
YI50T7 50A 8 33 38 43 39 28
YI60T7 60A 9 35 42 48 34 29
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YI40T7 40A 17 51 63 47 40 36
YI50T7 50A 13 37 45 51 49 21
YI60T7 60A 15 38 44 48 43 23

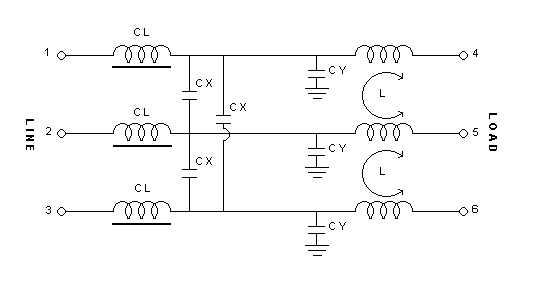

4. CIRCUIT

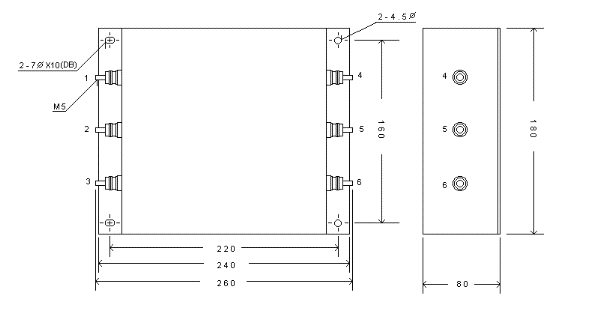

5. DIMENSION (mm)


YI40T7~YI60T7

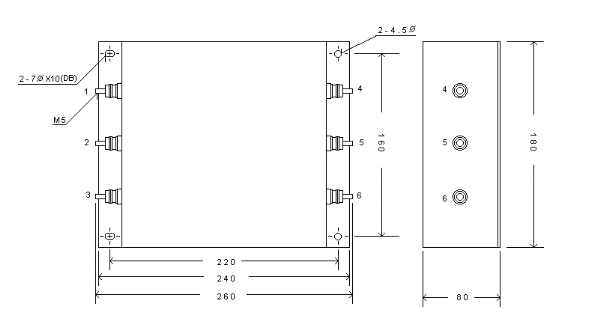

YI40T7-1~YI60T7-1



Download yit7.pdf Specification File (76K)
