YUNPEN USA
YG-T5 SERIES
1. FEATURES
  • Low cost type
  • Chassis mount
  • All parts are approved by UL and CSA

2. SPECIFICATIONS
ITEM \ MODEL
YG01T5
YG03T5
YG06T5
YG10T5
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.40 ~ 48MHZ
0.10 ~ 40MHZ
0.60 ~ 50MHZ
0.13 ~ 40MHZ
0.90 ~ 50MHZ
0.60 ~ 50MHZ
1.00 ~ 50MHZ
2.00 ~ 50MHZ
CX
0.1uF
0.1uF
0.1uF
0.1uF
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
3.7mH*2
1.8mH*2
0.7mH*2
0.3mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YG01T5 1A 25 37 42 41 43 26
YG03T5 3A 21 31 38 37 40 27
YG06T5 6A 13 18 23 37 43 34
YG10T5 10A 6 14 21 33 39 38
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YG01T5 1A 4 15 23 37 35 35
YG03T5 3A 8 20 29 37 44 32
YG06T5 6A 7 16 22 39 48 50
YG10T5 10A 5 14 21 34 42 38

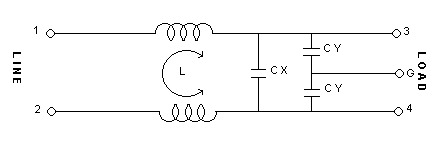

4. CIRCUIT

5. DIMENSION(mm)


YG01T5~YG10T5



Download ygt5.pdf Specification File (59K)
