YUNPEN USA
YC-T1L2, YD-T4L2 SERIES
1. FEATURES
  • Two stage filters designed to provide high performance in supperssing both line-to-line and line-to-ground noise for most digital electronic equipment
  • 250 Fasten terminals (YC-T1L2)
  • Screw output terminals M-4. (YD-T4L2)
  • All parts of YC-T1L2 are approved by UL and CSA EXCEPT YC10T1L2
  • All parts of YD-T4L2 are approved by UL, CSA and VDE EXCEPT YD10T1L2

2. SPECIFICATIONS (dB)

ITEM \ MODEL
YC01T1L2/YD01T4L2
YC03T1L2/YD03T4L2
YC06T1L2/YD06T4L2
YC10T1L2/YD10T4L2
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE

LINE TO GROUND
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.7 ohm MAX
0.3 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN

COMMON MODE 25dbMIN
0.25 ~ 15MHZ

0.10 ~ 15MHZ
0.40 ~ 28MHZ

0.18 ~ 22MHZ
0.60 ~ 30MHZ

0.40 ~ 25MHZ
0.85 ~ 42MHZ

1.00 ~ 30MHZ
CX
0.1uF*3
0.1uF*3
0.1uF*3
0.1uF*3
CY
3300pF*4
3300pF*4
3300pF*4
3300pF*4
INDUCTANCE
3.7mH*4
1.8mH*4
0.7mH*4
0.3mH*4

3. NOISE ATTENUATION
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YC01T1L2/YD01T4L2 1A 46 74 73 58 51 27
YC03T1L2/YD03T4L2 3A 38 68 80 58 53 48
YC06T1L2/YD06T4L2 6A 21 51 62 66 69 51
YC10T1L2/YD10T4L2 10A 4 32 50 66 58 48
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YC01T1L2/YD01T4L2 1A 7 52 46 54 47 32
YC03T1L2/YD03T4L2 3A 5 53 62 51 44 38
YC06T1L2/YD06T4L2 6A 15 30 75 55 49 41
YC10T1L2/YD10T4L2 10A 6 18 54 55 48 41

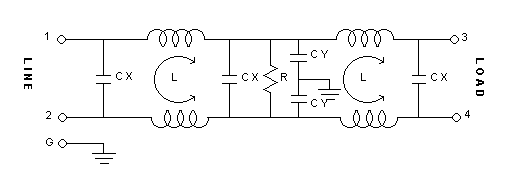

4. CIRCUIT

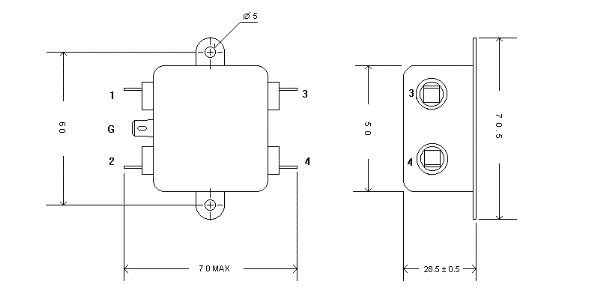

5. DIMENSION (mm)


YC01T1L2~YC10T1L2

YD01T4L2~YD10T4L2




Download yct1l2ydt4l2.pdf Specification File (99K)
