YUNPEN USA
YAC-T1, YAC-T3 SERIES
1. FEATURES
  • General purpose filter with IEC Connector providing effective line-to-ground noise up to 10 amp., 250VAC
  • Low cost
  • Compact design
  • 250 Fasten terminals (YAC-T1)
  • Solder lug terminals (YAC-T3)
  • All parts are approved by UL, CSA and VDE


2. SPECIFICATIONS
ITEM \ MODEL
YAC01T1/YAC01T3
YAC03T1/YAC03T3
YAC06T1/YAC06T3
YAC10T1/YAC10T3
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE

LINE TO GROUND
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
1450V DC

2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm 50VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN

COMMON MODE 25dbMIN
0.60 ~ 45MHZ

0.10 ~ 40MHZ
0.80 ~ 50MHZ

0.20 ~ 50MHZ
0.80 ~ 50MHZ

0.40 ~ 50MHZ
1.00 ~ 50MHZ

1.00 ~ 50MHZ

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YAC01T1/YAC01T3 1A 26 37 42 41 37 21
YAC03T1/YAC03T3 3A 21 30 36 42 37 22
YAC06T1/YAC06T3 6A 13 21 26 41 42 26
YAC10T1/YAC10T3 10A 5 14 19 34 41 26
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YAC01T1/YAC01T3 1A 7 17 24 42 39 27
YAC03T1/YAC03T3 3A 8 18 23 43 40 27
YAC06T1/YAC06T3 6A 5 16 21 38 41 34
YAC10T1/YAC10T3 10A 4 13 19 31 38 31

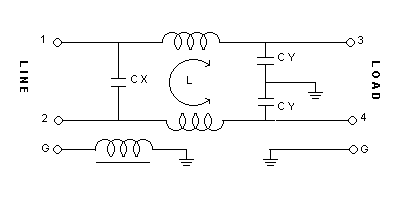

4. CIRCUIT

5. DIMENSION (mm)

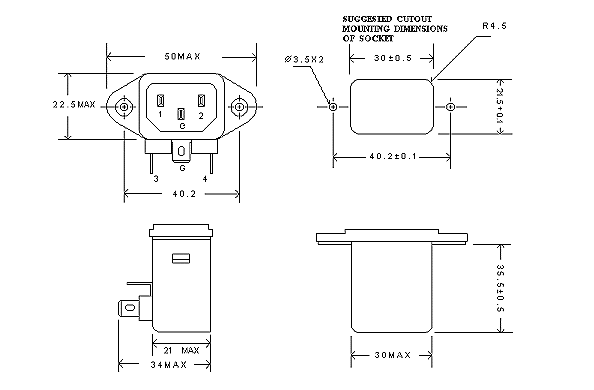

YAC01T1~YAC10T1

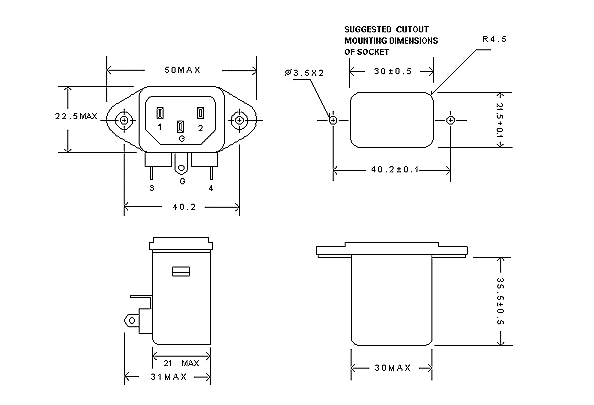

YAC01T3~YAC10T3



Download yac.pdf Specification File (77K)
