1.
FEATURES
|
  |
2. SPECIFICATIONS
|
ITEM
\ MODEL
|
YQ01A1
|
YQ02A1
|
YQ04A1
|
YQ06A1
|
|
|
RATED
VOLTAGE
|
250V
AC
|
250V
AC
|
250V
AC
|
250V
AC
|
|
|
RATED
CURRENT
|
1A
|
2A
|
4A
|
6A
|
|
|
LEAKAGE
CURRENT
|
0.45mA
MAX 250V,50HZ
|
0.45mA
MAX 250V,50HZ
|
0.45mA
MAX 250V,50HZ
|
0.45mA
MAX 250V,50HZ
|
|
|
TEST
VOLTAGE
|
LINE
TO LINE
LINE
TO GROUND
|
1450V
DC
2250V
DC
|
1450V
DC
2250V
DC
|
1450V
DC
2250V
DC
|
1450V
DC
2250V
DC
|
|
INSULATION
RESISTANCE
|
100M
ohm MIN 250VDC
|
100M
ohm MIN 250VDC
|
100M
ohm MIN 250VDC
|
100M
ohm MIN 250VDC
|
|
|
DIRECT
CURRENT RESISTANCE
|
0.5
ohm MAX
|
0.5
ohm MAX
|
0.2
ohm MAX
|
0.2
ohm MAX
|
|
|
TEMPERATURE
RISE
|
30C
MAX
|
30C
MAX
|
30C
MAX
|
30C
MAX
|
|
|
OPERATING
TEMPERATURE
|
-25
~ +85C
|
-25
~ +85C
|
-25
~ +85C
|
-25
~ +85C
|
|
|
ATTENUATION
|
NORMAL
MODE 25dbMIN
COMMON
MODE 25dbMIN
|
0.50
~ 40MHZ
0.10
~ 40MHZ
|
0.50
~ 40MHZ
0.10
~ 40MHZ
|
0.60
~ 50MHZ
0.10
~40MHZ
|
0.80
~ 50MHZ
0.40
~ 50MHZ
|
|
CX
|
0.22uF*3
|
0.22uF*3
|
0.22uF*3
|
0.22uF*3
|
|
|
CY
|
2200pF*2
|
2200pF*2
|
2200pF*2
|
2200pF*2
|
|
|
INDUCTANCE
|
10.5mH*2
|
4.6mH*2
|
2.5mH*2
|
0.8mH*2
|
|
3. NOISE ATTENUATION (dB)
|
COMMON
MODE (LINE TO GROUND) IN 50 OHM SYSTEM
|
|||||||
|
TYPE
|
CURRENT
|
FREQUENCY-MHZ
|
|||||
|
RATING
|
0.15
|
0.5
|
1.0
|
5.0
|
10.0
|
30.0
|
|
|
YQ01A1
|
1A
|
26
|
37
|
42
|
41
|
37
|
21
|
|
YQ02A1
|
2A
|
21
|
30
|
36
|
42
|
37
|
22
|
|
YQ04A1
|
4A
|
13
|
21
|
26
|
41
|
42
|
26
|
|
YQ06A1
|
6A
|
5
|
14
|
19
|
34
|
41
|
26
|
|
DIFFERENTIAL
MODE (LINE TO LINE) IN 50 OHM SYSTEM
|
|||||||
|
YQ01A1
|
1A
|
7
|
17
|
24
|
42
|
39
|
27
|
|
YQ02A1
|
2A
|
8
|
18
|
23
|
43
|
40
|
27
|
|
YQ04A1
|
4A
|
5
|
16
|
21
|
38
|
41
|
34
|
|
YQ06A1
|
6A
|
4
|
13
|
19
|
31
|
38
|
31
|

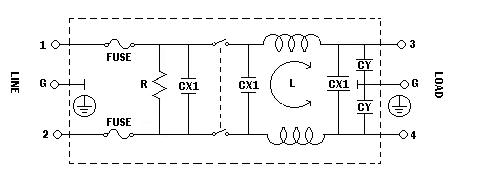

4. CIRCUIT

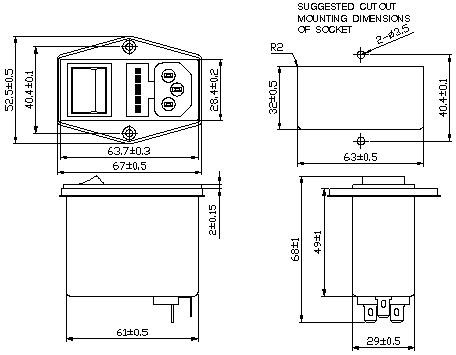

5. DIMENSION (mm)
YQ-A1
Download yqa1.pdf
Specification File (112K)
