YUNPEN USA
YK-T1 SERIES
1. FEATURES
  • General purpose filter providing effective emi suppression of both line-to-line and line-to-ground noise.
  • Low cost
  • 250 Fasten terminals
  • All parts are approved by UL, CSA and VDE.

2. SPECIFICATIONS
ITEM \ MODEL
YK01T1
YK03T1
YK06T1
YK10T1
RATED VOLTAGE
250V AC
250V AC
250V AC
250V AC
RATED CURRENT
1A
3A
6A
10A
LEAK CURRENT
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
0.8mA MAX 250V,50HZ
TEST VOLTAGE
LINE TO LINE
LINE TO GROUND
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
1450V DC
2250V DC
INSULATION RESISTANCE
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
100M ohm MIN 250VDC
DIRECT CURRENT RESISTANCE
0.5 ohm MAX
0.2 ohm MAX
0.15 ohm MAX
0.1 ohm MAX
TEMPERATURE RISE
30C MAX
30C MAX
30C MAX
30C MAX
OPERATING TEMPERATURE
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
-25 ~ +85C
ATTENUATION
NORMAL MODE 25dbMIN
COMMON MODE 25dbMIN
0.50 ~ 35MHZ
0.10 ~ 30MHZ
0.70 ~ 50MHZ
0.20 ~ 50MHZ
0.90 ~ 50MHZ
0.60 ~ 50MHZ
1.30 ~ 50MHZ
1.30 ~ 50MHZ
CX
0.1uF
0.1uF
0.1uF
0.1uF
CY
3300pF*2
3300pF*2
3300pF*2
3300pF*2
INDUCTANCE
3.7mH*2
1.8mH*2
0.7mH*2
0.3mH*2

3. NOISE ATTENUATION (dB)
COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM
TYPE CURRENT FREQUENCY-MHZ
RATING 0.15 0.5 1.0 5.0 10.0 30.0
YK01T1 1A 26 35 38 41 41 37
YK03T1 3A 21 27 32 39 39 42
YK06T1 6A 13 22 27 39 46 35
YK10T1 10A 7 16 21 35 41 36
DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM
YK01T1 1A 9 19 24 47 47 43
YK03T1 3A 8 19 25 41 39 34
YK06T1 6A 4 10 15 36 36 30
YK10T1 10A 5 14 19 30 36 36

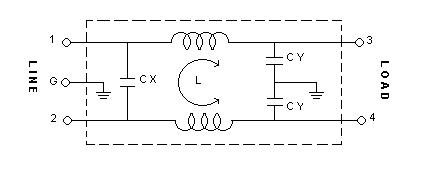

4. CIRCUIT

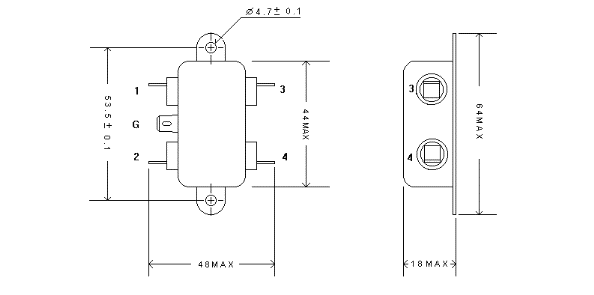

5. DIMENSION(mm)


YK01T1~YK10T1



Download ykt1.pdf Specification File (116K)
