SPECIFICATIONS
|
ITEM
\ MODEL
|
YE05T1/YE05T4
|
YE10T1/YE10T4
|
YE15T1/YE15T4
|
YE20T1/YE20T4
|
YE30T4
|
|
RATED
VOLTAGE
|
250V
AC
|
250V
AC
|
250V
AC
|
250V
AC
|
250V
AC
|
|
RATED
CURRENT
|
5A
|
10A
|
15A
|
20A
|
30A
|
|
LEAK
CURRENT
|
0.8mA
MAX 250V,50HZ
|
0.8mA
MAX 250V,50HZ
|
0.8mA
MAX 250V,50HZ
|
0.8mA
MAX 250V,50HZ
|
0.8mA
MAX 250V,50HZ
|
|
TEST
VOLTAGE
|
LINE
TO LINE
LINE
TO GROUND
|
1450V
DC
2250V
DC
|
1450V
DC
2250V
DC
|
1450V
DC
2250V
DC
|
1450V
DC
2250V
DC
|
1450V
DC
2250V
DC
|
|
INSULATION
RESISTANCE
|
100M
ohm MIN 250VDC
|
100M
ohm MIN 250VDC
|
100M
ohm MIN 250VDC
|
100M
ohm MIN 250VDC
|
100M
ohm MIN 250VDC
|
|
DIRECT
CURRENT RESISTANCE
|
0.3
ohm MAX
|
0.15
ohm MAX
|
0.1
ohm MAX
|
0.05
ohm MAX
|
0.01
ohm MAX
|
|
TEMPERATURE
RISE
|
30C
MAX
|
30C
MAX
|
30C
MAX
|
30C
MAX
|
30C
MAX
|
|
OPERATING
TEMPERATURE
|
-25
~ +85C
|
-25
~ +85C
|
-25
~ +85C
|
-25
~ +85C
|
-25
~ +85C
|
|
ATTENUATION
|
NORMAL
MODE 25dbMIN
COMMON
MODE 25dbMIN
|
0.27
~ 50MHZ
0.10
~ 30MHZ
|
0.28
~ 25MHZ
0.13
~ 28MHZ
|
0.35
~ 40MHZ
0.15
~ 40MHZ
|
1.45
~ 50MHZ
0.90
~ 50MHZ
|
0.6
~ 50MHZ
1.0
~ 50MHZ
|
|
CX
|
0.1uF*2
|
0.1uF*2
|
0.1uF*2
|
0.1uF*2
|
0.1uF*2
|
|
CY
|
3300pF*2
|
3300pF*2
|
3300pF*2
|
3300pF*2
|
3300pF*2
|
|
INDUCTANCE
|
5mH*2
|
3mH*2
|
2mH*2
|
0.9mH*2
|
0.5mH*2
|
3.
NOISE ATTENUATION (dB)
| COMMON
MODE (LINE TO GROUND) IN 50 OHM SYSTEM |
| TYPE |
CURRENT |
FREQUENCY-MHZ |
| RATING |
0.15 |
0.5 |
1.0 |
5.0 |
10.0 |
30.0 |
| YE05T1/YE05T4 |
5A |
6 |
42 |
38 |
35 |
37 |
32 |
| YE10T1/YE10T4 |
10A |
28 |
42 |
37 |
34 |
34 |
35 |
| YE15T1/YE15T4 |
15A |
23 |
39 |
31 |
28 |
30 |
23 |
| YE20T1/YE20T4 |
20A |
14 |
22 |
24 |
31 |
34 |
28 |
| YE30T4 |
30A |
16 |
24 |
26 |
29 |
38 |
39
|
| DIFFERENTIAL
MODE (LINE TO LINE) IN 50 OHM SYSTEM |
| YE05T1/YE05T4 |
5A |
30 |
40 |
33 |
29 |
31 |
27 |
| YE10T1/YE10T4 |
10A |
5 |
44 |
42 |
39 |
40 |
38 |
| YE15T1/YE15T4 |
15A |
9 |
39 |
37 |
33 |
36 |
27 |
| YE20T1/YE20T4 |
20A |
9 |
32 |
31 |
36 |
39 |
34 |
| YE30T4 |
30A |
14 |
22 |
34 |
35 |
42 |
40
|
4.

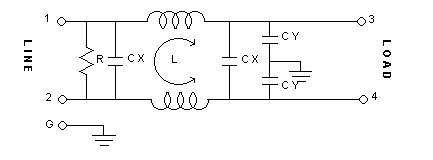

CIRCUIT
5.
DIMENSION(mm)

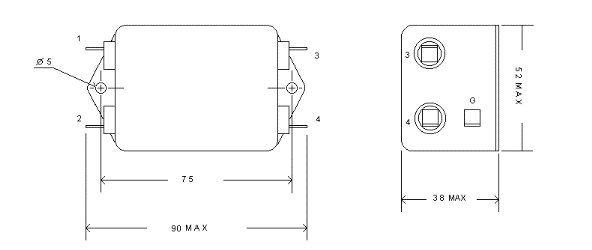

YE05T1~YE20T1

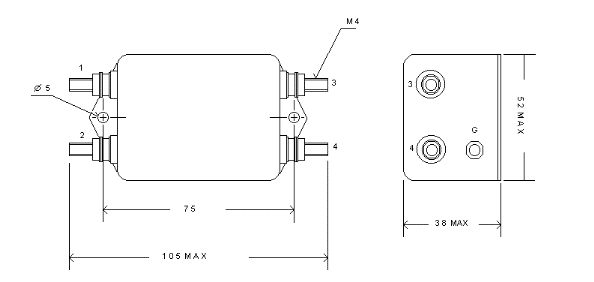

YE05T4~YE30T4
